230v LED STRIP

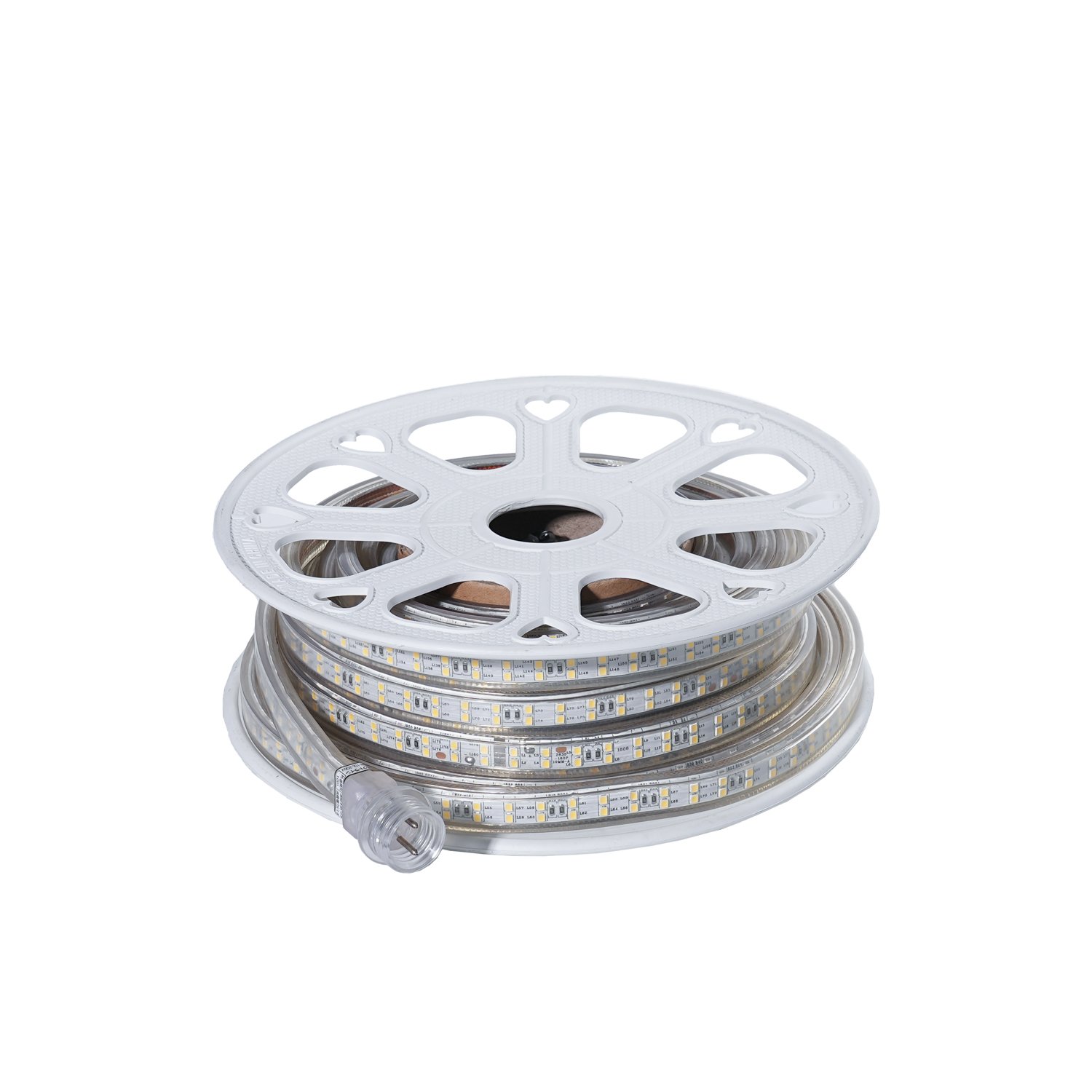

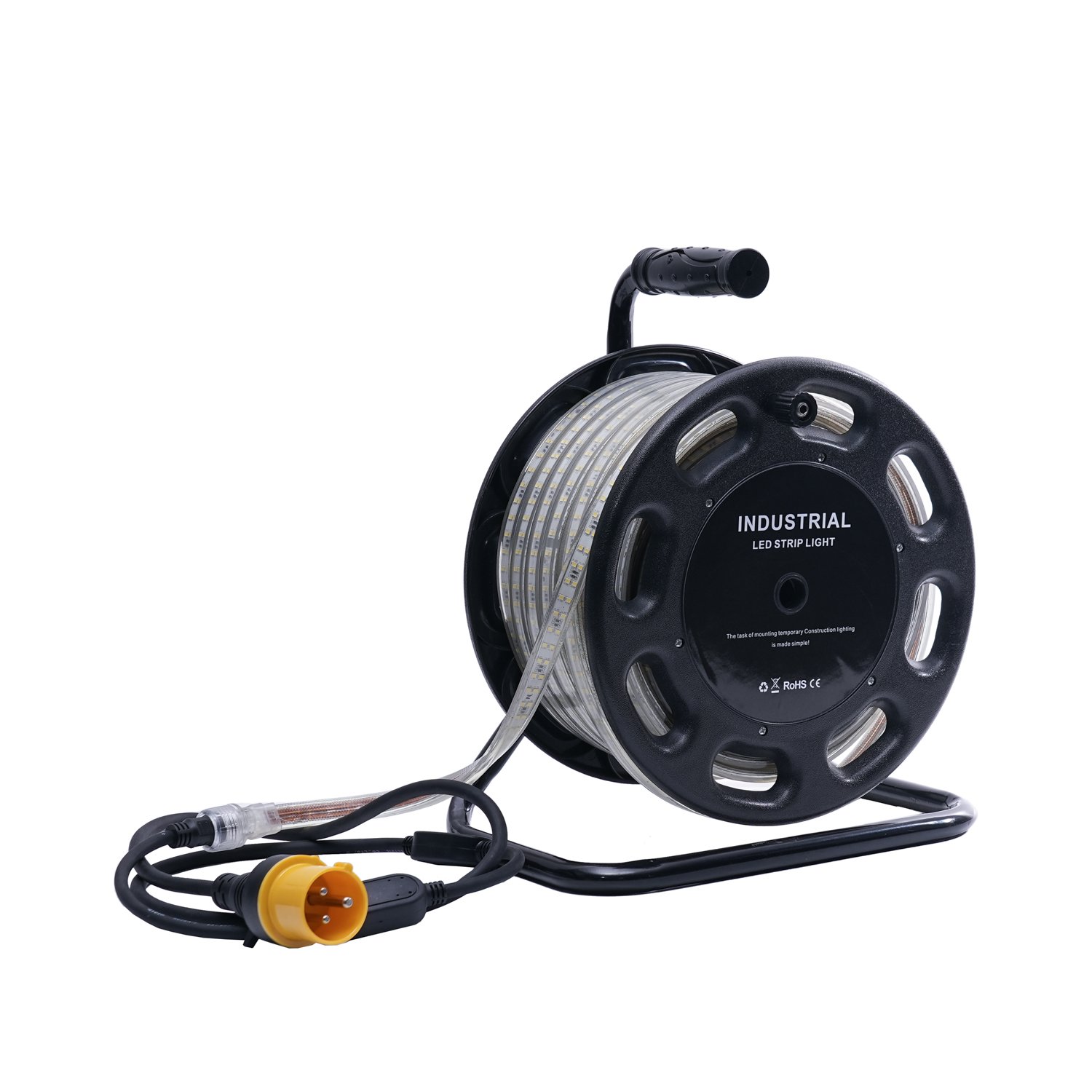

Our premium and robust quality lighting strip has 180 LEDs per metre and provides up to 1,500 lumens per metre in 12w/m option or 750 lumens in ecofriendly 5w/m option. It is supplied in an easy to transport cable reel in either 25m or trolley option in 50m, customised length options are available. Connect up to a maximum 100m directly with 5w/metre strip & 50m with 12w/metre, it’s perfect for construction sites, tunnels, viaducts and outdoor applications like walkways and illuminating architecture. 25m lengths can be joined together in a simple plug and play solution to a maximum of 100m using our 5w/model or 50m with 12w/pm. Ensures continuous illumination as each LED is wired in parallel. If one LED fails the rest will remain lit, allowing work to continue. No electrician required simply plug into source 230v plug.
Key Features
- Available in a 25m and 50m lengths
- Directly connect to a 230v power source, simplifying setup and use
- Built with a robust enclosure designed to withstand tough conditions, ensuring
durability and long-term use. - Mounting clips, easy and secure attachment for quick installation.
- Mounting track, provides additional stability and alignment for the LED strip
lights. - 3hr Emergency backup option available.
SPECIFICATIONS
| Voltage | 230V~ 50/60Hz | |
|---|---|---|
| LED Colour | 3000K,4000K,6000K | |
| Beam Angle | 120° | |
| LED Package | S M D2835(one colour) | |
| CRI | Ra80+ | |
| Luminous Flux | 1500 lm/m in 12w/m or 750lm/m in 5w/m | |
| LED Spacing | 180 LEDS/M | |
| Wattage | 12W/M or 5W/M | |
| Operation Temp | -20°C ~ +45°C | |
| Storage Temp | -10°C ~ +30°C | |
| Housing Material | PVC | |
| Power Factor | >0.95 | |
| Wire Guage | 20 AWG | |
| Length | 25M (50M also available and customised lengths) | |
| Rating | Indoor/Outdoor; IP65 | |
| Dimmable | Yes | |
| Protection Class | Class II | |
