110v LED STRIP

The temporary LED strip lighting system incorporates a high-density 180 LED/m configuration, delivering luminous outputs up to 1200 lm/m with consistent photometric performance and uniform illumination. The luminaire assembly utilises a flame-retardant PVC housing with integrated copper conductors, providing high mechanical flexibility and durability for demanding operating environments. Rated to IP65 and IK10, the system is engineered for continuous-duty operation with stable thermal and electrical performance across extended installation lengths. Compliant with EN 60598 luminaire safety and EMC standards, the system is available in both 110V and 230V configurations, with emergency battery backup options available.

Key Features

  • Length Options: Available in 25m, 50m, and customisable lengths.
  • SMD 2835
  • 5w/m or 12w/m available
  • High Density: 180 LED chips per meter for superior brightness
  • Easy Installation: 25m lengths can be easily joined in a plug-and-play manner.
  • Maximum Lengths: Up to 100m can be achieved using the 5w/m model, and up to 50m with the 12w/m model.
  • Up to 1200lm/m
  • 3 hour emergency backup option available.

Perfect for

MAKE AN ENQUIRY

SPECIFICATIONS

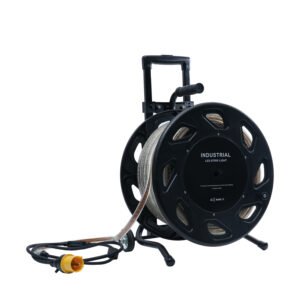

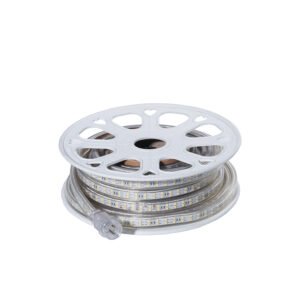

ORDER CODE DRUM/REEL WATTAGE CCT* IP BEAM ANGLE LM EFFICACY IES FILE
LXSM25HN55110 Drum – 25M 5W/M 5000K IP65 120° 500lm 100lm/W Available on request
LXSM25HN55110ER Reel – 25M 5W/M 5000K IP65 120° 500lm 100lm/W Available on request
LXSM25HN125110 Drum – 25M 12W/M 5000K IP65 120° 1200lm 100lm/W Available on Request
LXSM25HN125110ER Reel – 25M 12W/M 5000K IP65 120° 1200lm 100lm/W Available on request
LXSM50HN55110 Drum – 50M 5W/M 5000K IP65 120° 500lm 100lm/W Available on request
LXSM50HN55110ER Reel – 50M 5W/M 5000K IP65 120° 500lm 100lm/W Available on request
LXSM50HN12110 Drum – 50M 12W/M 5000K IP65 120° 1200lm 100lm/W Available on request
LXSM50HN55110ER Reel – 50M 12W/M 5000K IP65 120° 1200lm 100lm/W Available on request

*OTHER CCT AVAILABLE ON REQUEST

ORDER CODE DRUM/REEL WATTAGE CCT* IP BEAM ANGLE LM EFFICACY IES FILE
LXSM25HN55110 Drum – 25M 5W/M 5000K IP65 120° 500lm 100lm/W Available on request
LXSM25HN55110ER Reel – 25M 5W/M 5000K IP65 120° 500lm 100lm/W Available on request
LXSM25HN125110 Drum – 25M 12W/M 5000K IP65 120° 1200lm 100lm/W Available on Request
LXSM25HN125110ER Reel – 25M 12W/M 5000K IP65 120° 1200lm 100lm/W Available on request
LXSM50HN55110 Drum – 50M 5W/M 5000K IP65 120° 500lm 100lm/W Available on request
LXSM50HN55110ER Reel – 50M 5W/M 5000K IP65 120° 500lm 100lm/W Available on request
LXSM50HN12110 Drum – 50M 12W/M 5000K IP65 120° 1200lm 100lm/W Available on request
LXSM50HN55110ER Reel – 50M 12W/M 5000K IP65 120° 1200lm 100lm/W Available on request

*OTHER CCT AVAILABLE ON REQUEST

ORDER CODE DRUM/REEL WATTAGE CCT* IP BEAM ANGLE LM EFFICACY IES FILE
LXSM25HN55110 Drum – 25M 5W/M 5000K IP65 120° 500lm 100lm/W Available on request
LXSM25HN55110ER Reel – 25M 5W/M 5000K IP65 120° 500lm 100lm/W Available on request
LXSM25HN125110 Drum – 25M 12W/M 5000K IP65 120° 1200lm 100lm/W Available on Request
LXSM25HN125110ER Reel – 25M 12W/M 5000K IP65 120° 1200lm 100lm/W Available on request
LXSM50HN55110 Drum – 50M 5W/M 5000K IP65 120° 500lm 100lm/W Available on request
LXSM50HN55110ER Reel – 50M 5W/M 5000K IP65 120° 500lm 100lm/W Available on request
LXSM50HN12110 Drum – 50M 12W/M 5000K IP65 120° 1200lm 100lm/W Available on request
LXSM50HN55110ER Reel – 50M 12W/M 5000K IP65 120° 1200lm 100lm/W Available on request

*OTHER CCT AVAILABLE ON REQUEST
