| ORDER CODE | INPUT VOLTAGE | OUTPUT VOLTAGE | LAMP POWER | EMG POWER | EMG TIME | IP | BATTERY CHARGE | IES FILE | |
|---|---|---|---|---|---|---|---|---|---|
 |
LXGD01BU3HR | AC100-240v | DC70-250V | MAX 1500W@110V | 3 Hour | IP65 | 10-12 Hour | N/A |
*CUSTOMISED EMERGENCY WORKING TIME OPTIONS AVAILABLE ON REQUEST

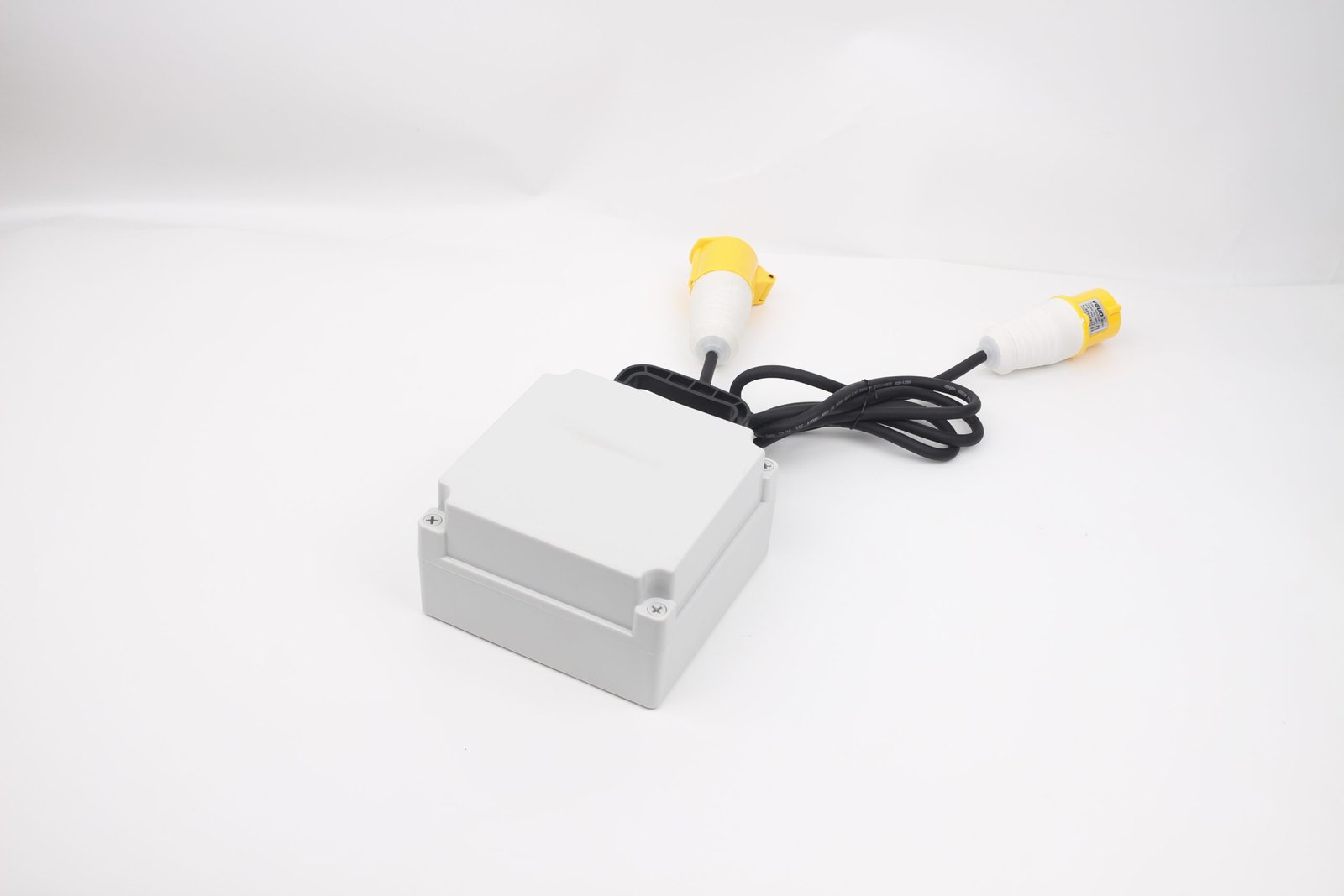

LXGD01BU3HR – 27W
Our 27W Emergency Power Supply Box is designed specifically for high voltage AC strip lights. Engineered with durability and performance in mind, this compact, efficient, and reliable power supply box ensures uninterrupted lighting during power outages, delivering 27W constant output for up to 3 hours of emergency operation, keeping your lighting operational when it matters most. Built with a 22.2V, 5200mAh high-capacity battery, it offers consistent performance while advanced protection features—including no-load protection and system failure alerts to ensure safe and efficient use.
Key Features
KEY FEATURES
-
Robust ABS Housing – Compact design (175×175×105mm), lightweight (1.93kg).
-
High-Capacity Battery – 22.2V, 5200mAh
-
Wide Voltage Range – AC100–240V, 50/60Hz
-
Maximum Load – Supports up to 700W @110V strip
-
Backup runtime: Up to 3 hours.
-
Recharge time: ~10 hours.
-
Ultra-Low Self-Consumption – <50uA in shutdown mode
-
LED Indicators – Clear status for charging, full charge, emergency operation, system failure, and no-load detectionttery
-
Capacity Display – Push-button LED indicator
-
Automatic Emergency Activation
-
Manual Shutdown Option
SPECIFICATIONS
