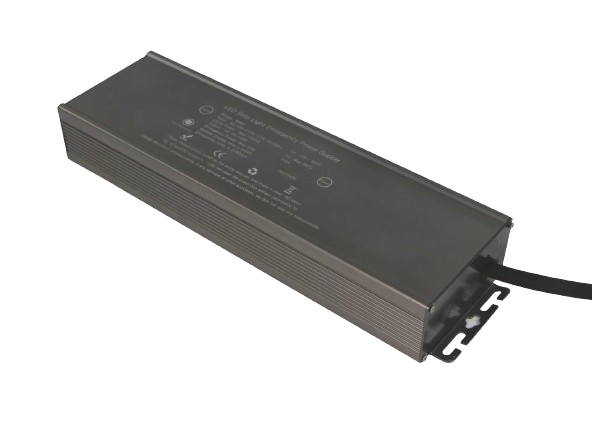

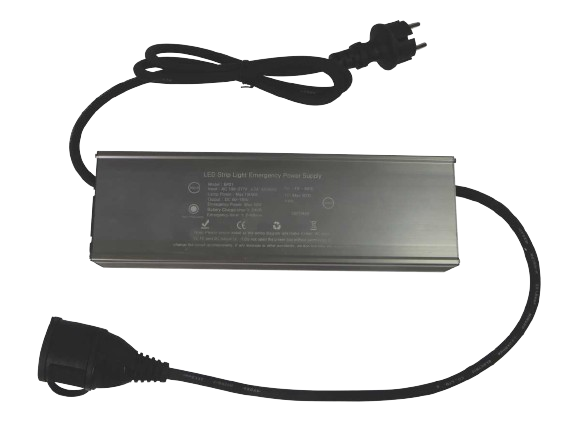

LXEP01110
Our 230V temporary site LED lighting solution now comes with a robust 3-hour emergency backup power supply, designed to ensure safety and continuous operation during power outages, making it an optimal choice for construction sites and various other demanding environments.
Key Features
- 80V when the emergency function is operational.
- Maximum Emergency Power: 50W
- Minimum Starting Emergency Power: 20W
- Emergency Duration: 60 minutes of operation in emergency mode.
- Automatic Reset, power supply ceases after 60 minutes in emergency mode but will resume for another 60 minutes if power is restored and then lost again.
- Battery and Indicator Functions
- Charging Indicator, green light, more than 90% charged, red light, less than 90% charged
SPECIFICATIONS
| Model | EP01 | |
|---|---|---|
| Input Volt | AC85-130V 50/60 Hz | |
| Output Volt | DC75 ~ 83V | |
| Lamp Power | 600W Max | |
| Emergency Power | 50Max | |
| Emergency Time | 3*60 mins | |
| Battery Charge | 24HR (Full Charge) | |
| Input Cable | 1.2 meter Length, 2*1.5mm | |
| Output Cable | 0.5 meter Length, 2*1.5mm | |
| Ta | -10 ~ 50 | |
| Tc | Max 60 C | |
| IP Grade | IP65 | |
| Warranty | 2 Years | |
