Ex Marking II 2G Ex mb op is IIC T4 Gb II 2D Ex mb op is IIIC T135°C Db Operating temperature range -40°C~80°C Dimension W20mm*H10mm IP degree of protection IP67 Impact strength IK10 Standards EN IEC 60079-0 EN IEC 60079-18 EN IEC 60079-28 Weight 285g/m Voltage DC24V LED QTY/m 42 Lumen/m 500lm Rated Power/m …
Explosion protection marking ATEX (TPS 20ATEX 106819 0002 X Rev.00),IECEx (IECEx NEP 20.0007X) Gas explosion protection II 2G Ex db IIB+H2 T6…T4 Gb,Ex db IIB+H2 T… Gb Dust explosion protection II 2D Ex tb IIIC T80°C, T95°C T135°C Db IP66,Ex tb IIIC T…°C Db IP66 Ambient temperature Ta: – 43°C ~ +60°C (MAMX-*-*-D) Ta: – …

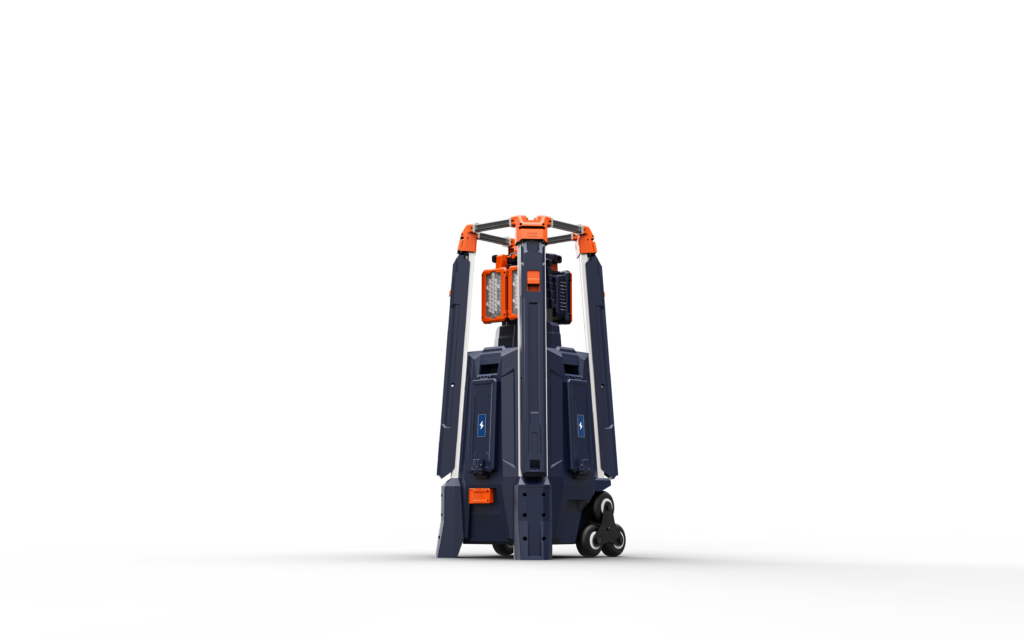

Product Code LXTL5000 4.2m Height 4.2m Weight 50Kg (Fitting only) Power Supply Battery / AC 100-277V Lumens Battery 0-33,000LM / AC 0-62,000LM Run Times >20h (Standard mode, D24-500 x 3) IP Grade IP65 Output(USB) Type-A (5V 2A) & Type-C (5V 2A) Battery System D24 Series Accessories Accessories Product LXMC2H CHARGER LXD24500 BATTERY LXX5320 DRIVER LXTKC9H …

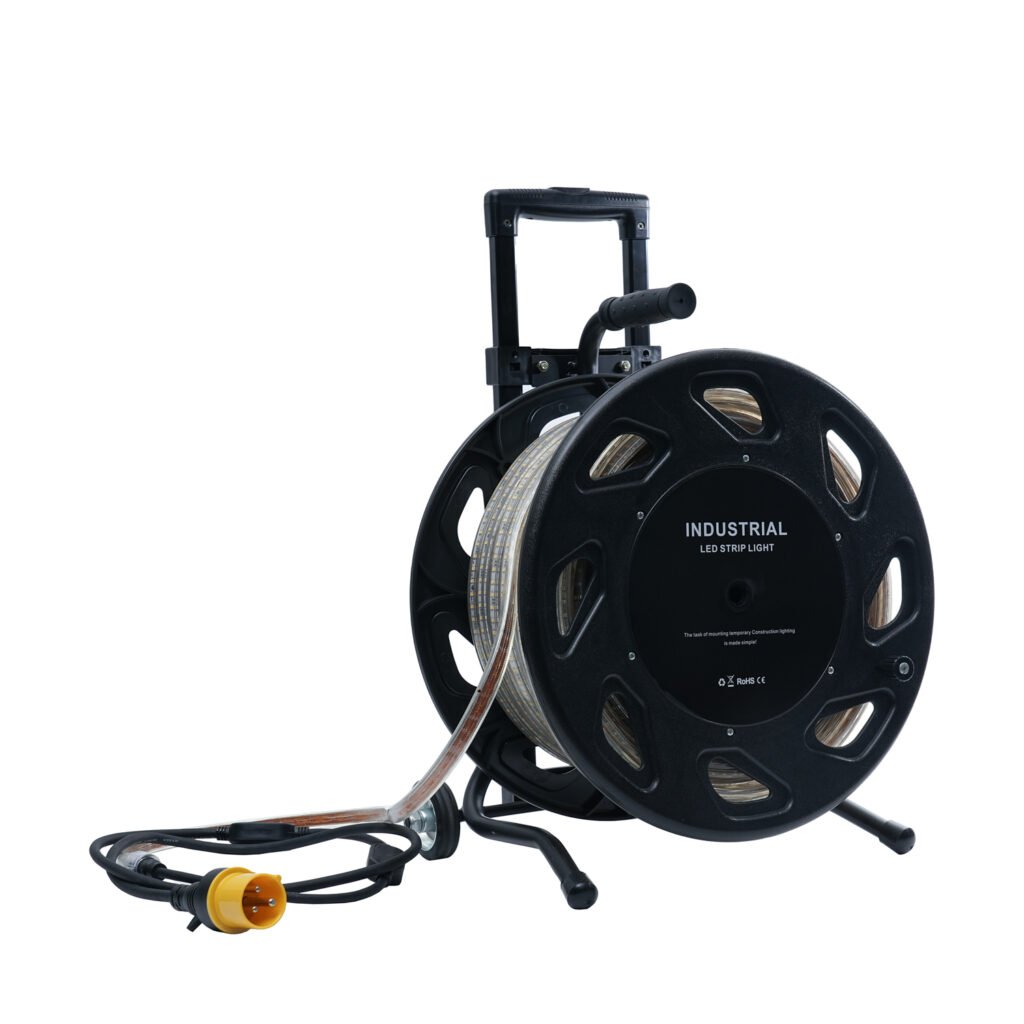

Direct AC100-120V input, No need external Power supply. Low voltage drop assure same brightness on whole 50 meters, Cuttable every 50CM. Leds of the same BIN with consistent colour. IP rank: IP67 Fast installation by Silicone Mounting Clips Product Model PS-F5050RGBW72-50M110 Colour RGBW Ra(W) ≥80 LED Qty 72LEDs/m LED Type 50m/Roll Length 50m/Roll Voltage （V …

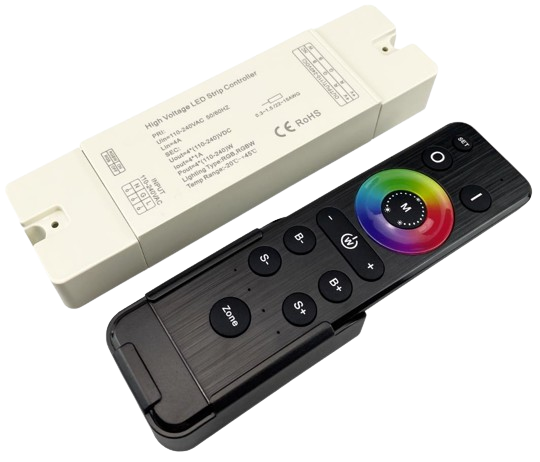

Controller Working temperature -20-45℃ Supply voltage AC110V-240V Output voltage DC110V-240V Connecting mode Common anode Static power consumption 1W Speed stage 1024 grade Grayscale 1024levels Packing size L170*W50*H29mm External dimension L160*W46*H25 mm Gross weight 130g Net weight 100g RF distance ≤20m RF frequency 2.4GHz Memory function Yes Output 4 channels Output current ≤1A(each channel) PWM frequency …
Voltage 230V~ 50/60Hz LED Colour 3000K,4000K,6000K Beam Angle 120° LED Package S M D2835(one colour) CRI Ra80+ Luminous Flux 1500 lm/m in 12w/m or 750lm/m in 5w/m LED Spacing 180 LEDS/M Wattage 12W/M or 5W/M Operation Temp -20°C ~ +45°C Storage Temp -10°C ~ +30°C Housing Material PVC Power Factor >0.95 Wire Guage 20 AWG …
Model LXEP01230 Input Volt AC100-277V < 7A 50/60 Hz Output Volt DC50 ~ 180V Lamp Power 600W Max Emergency Power 50Max Emergency Time 2*60 mins Battery Charge 24HR (Full Charge) Input Cable 1.2 meter Length, 2*1.5mm Output Cable 0.5 meter Length, 2*1.5mm Ta -10 ~ 50 Tc Max 60 C IP Grade IP65 Warranty 2 …
Model EP01 Input Volt AC85-130V 50/60 Hz Output Volt DC75 ~ 83V Lamp Power 600W Max Emergency Power 50Max Emergency Time 3*60 mins Battery Charge 24HR (Full Charge) Input Cable 1.2 meter Length, 2*1.5mm Output Cable 0.5 meter Length, 2*1.5mm Ta -10 ~ 50 Tc Max 60 C IP Grade IP65 Warranty 2 Years
HIGH POWER LED TOWER LIGHT. DEPLOYS IN SECONDS. POA. AVAILABLE IN 14 DAYS.
