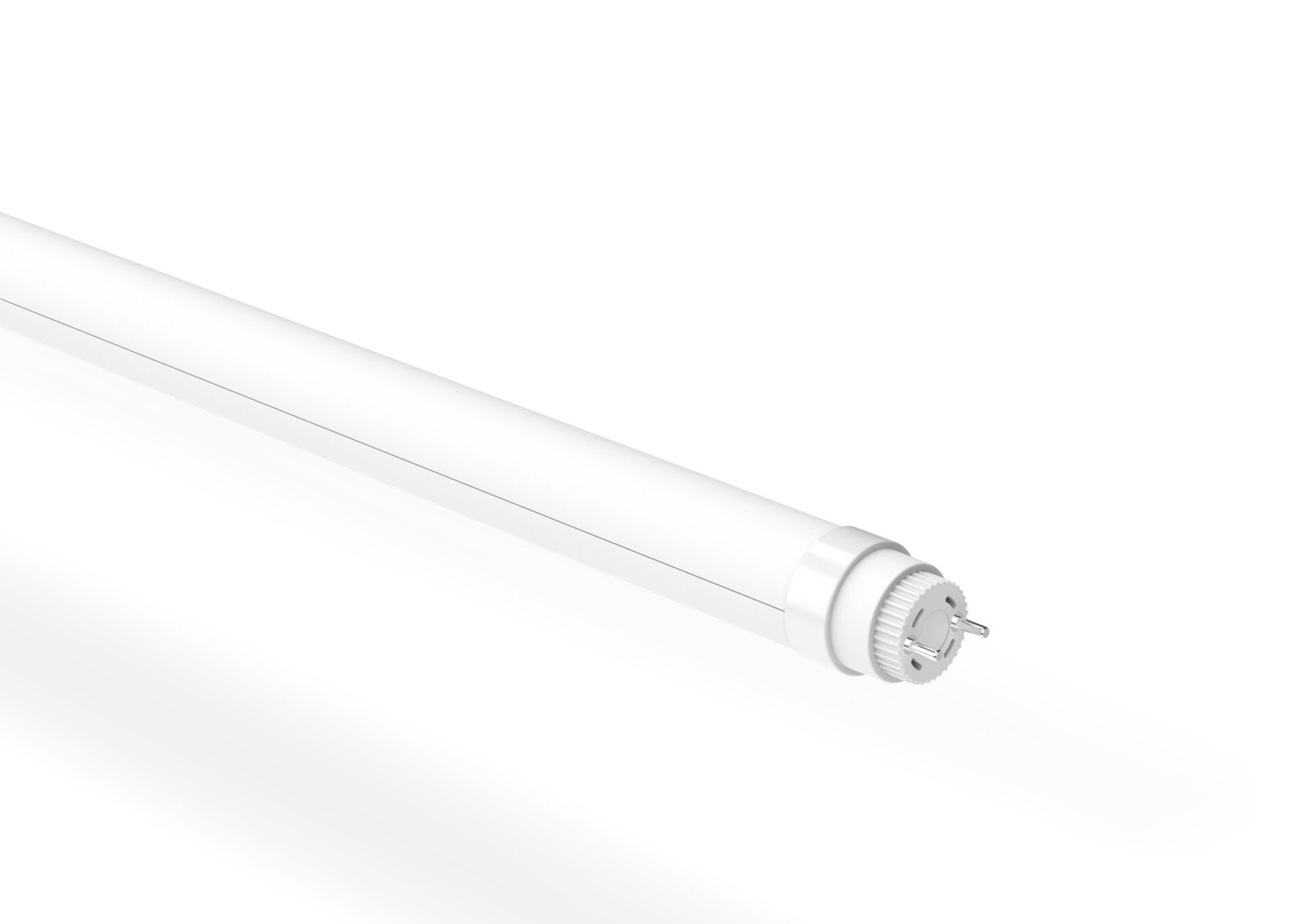

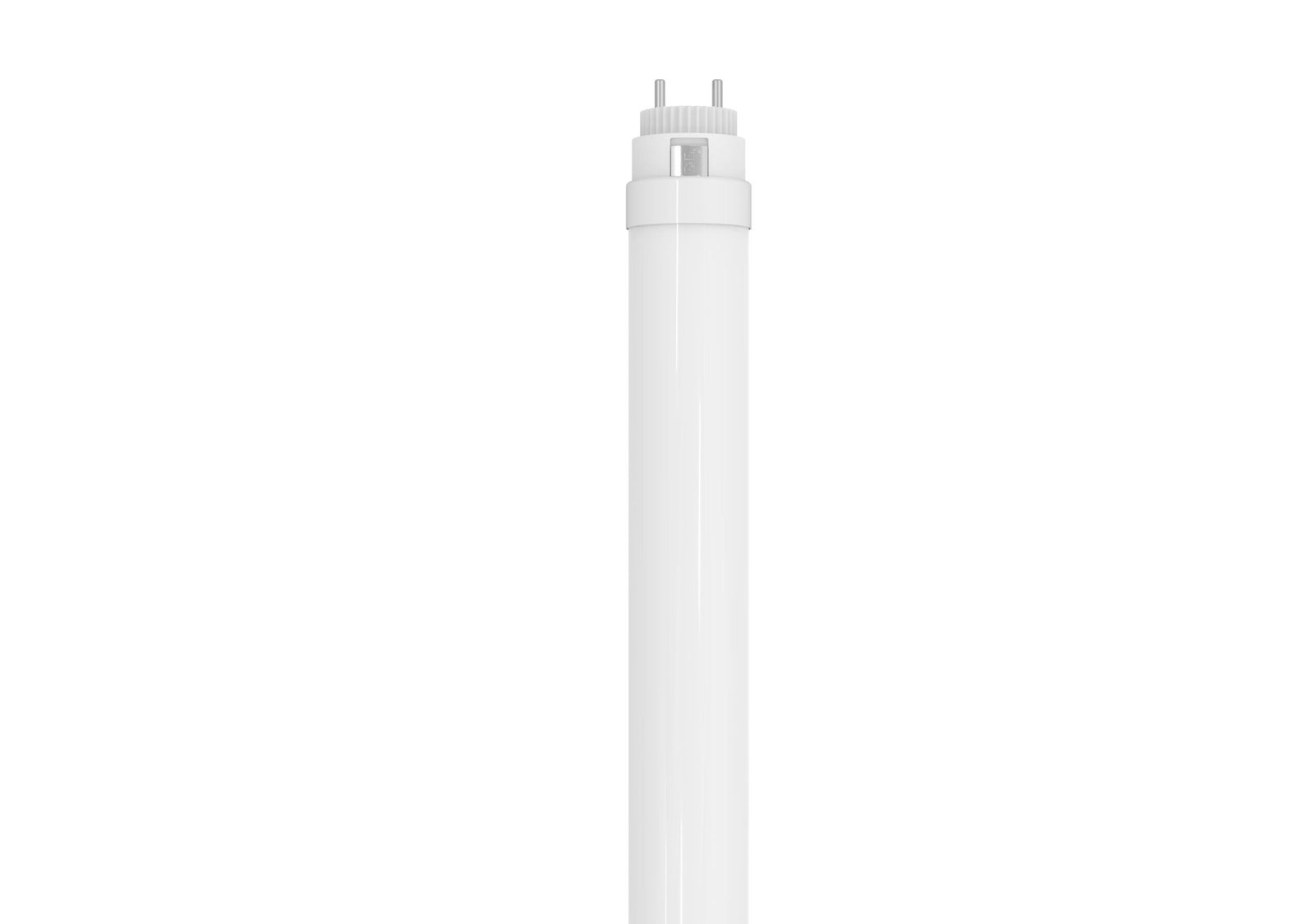

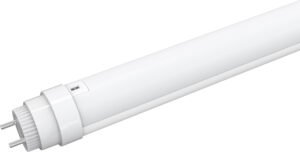

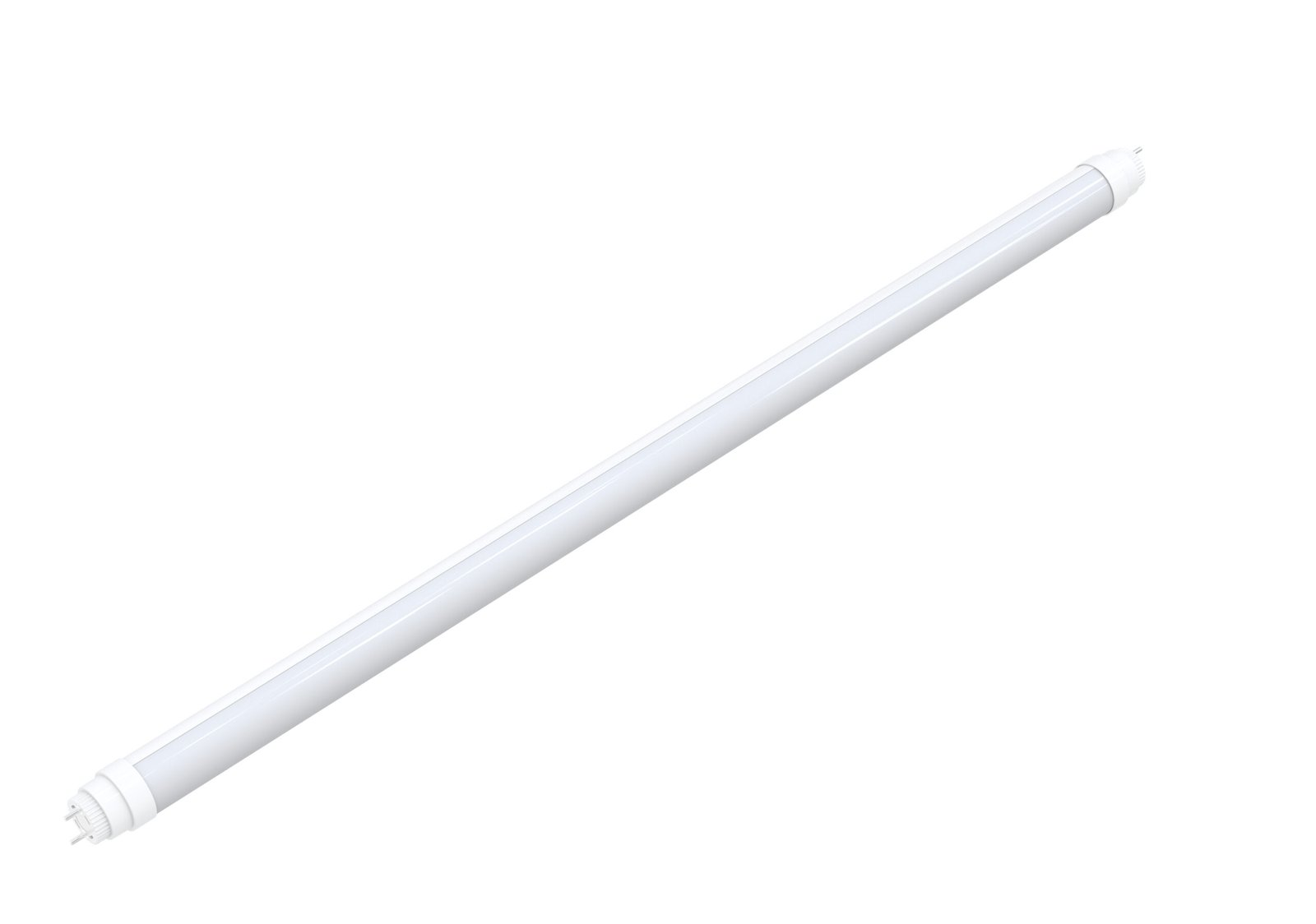

T8 STANDARD SWITCHABLE TUBE

LMXLED’s T8 tube offers long life, low energy power and are safe and easy to install. Each tube turns on promptly and produces superb, consistent light with accurate CCT. Beam angles 120° with clear cover or 140° with frosted cover.  Designed to provide bright and clear illumination providing up to 220lm/w.  Manufactured using high quality components including A6063 aluminium housing for good heat dissipation.

Key Features

  • Standard G13 end cap or rotatable end cap optional
  • Suitable for low ambient temperatures
  • Safe and reliable leading technology
  • Long lifespan
  • 10 years warranty
  • Flicker free



MAKE AN ENQUIRY

SPECIFICATIONS

ORDER CODE FINISH WATTAGE CCT* IP SIZE/BEAM ANGLE LM EFFICACY IES FILE
LX-DGA00-60061048-TS Frosted or Clear 6-10W 4000K IP20 600mm

Frosted- 140°

Clear – 120°

 6w – 1260lm

10w – 2100lm

 210lm/w Download
LX-DGA00-90061048-TS Frosted or Clear 6-10W 4000K IP20 900mm

Frosted – 140°

Clear 120°



 6w -1260lm

10w –  2100lm

 210lm/w Download
LX-DGA00-1.2101548-TS Frosted or Clear 10-15W 4000K IP20 1200mm

Frosted – 140°

Clear 120°

 10w – 2200lm

15w – 3300lm

 220lm/w Download
LX-DGA00-1.5101548-TS Frosted or Clear 10-15W 4000K IP20 1500mm

Frosted – 140°

Clear 120°

 10w – 2200lm

15w – 3300lm

 220lm/w Download
LX-DGA00-1.5152448-TS Frosted or Clear 15-24W 4000K IP20 1500mm

Frosted – 140°

Clear 120°

 15w – 3300lm

24w – 5280lm

 220lm/w Download

*OTHER CCT AVAILABLE ON REQUEST

SUBMIT AN ENQUIRY

For more information on this product or for order enquiries please complete the form below
